Mistakes to Avoid when Installing a Pond Viewing Window

A pond viewing window is one of the best additions you can make to a raised pond. But installing a pond viewing window is not a job where you can wing it and fix problems later. Water finds every gap, every rushed joint, every shortcut. Most of the calls we get about failed installations come down to the same handful of preventable errors.

Whether you are fitting a window into a new build or retrofitting one into an existing pond, these are the mistakes that cause the most grief.

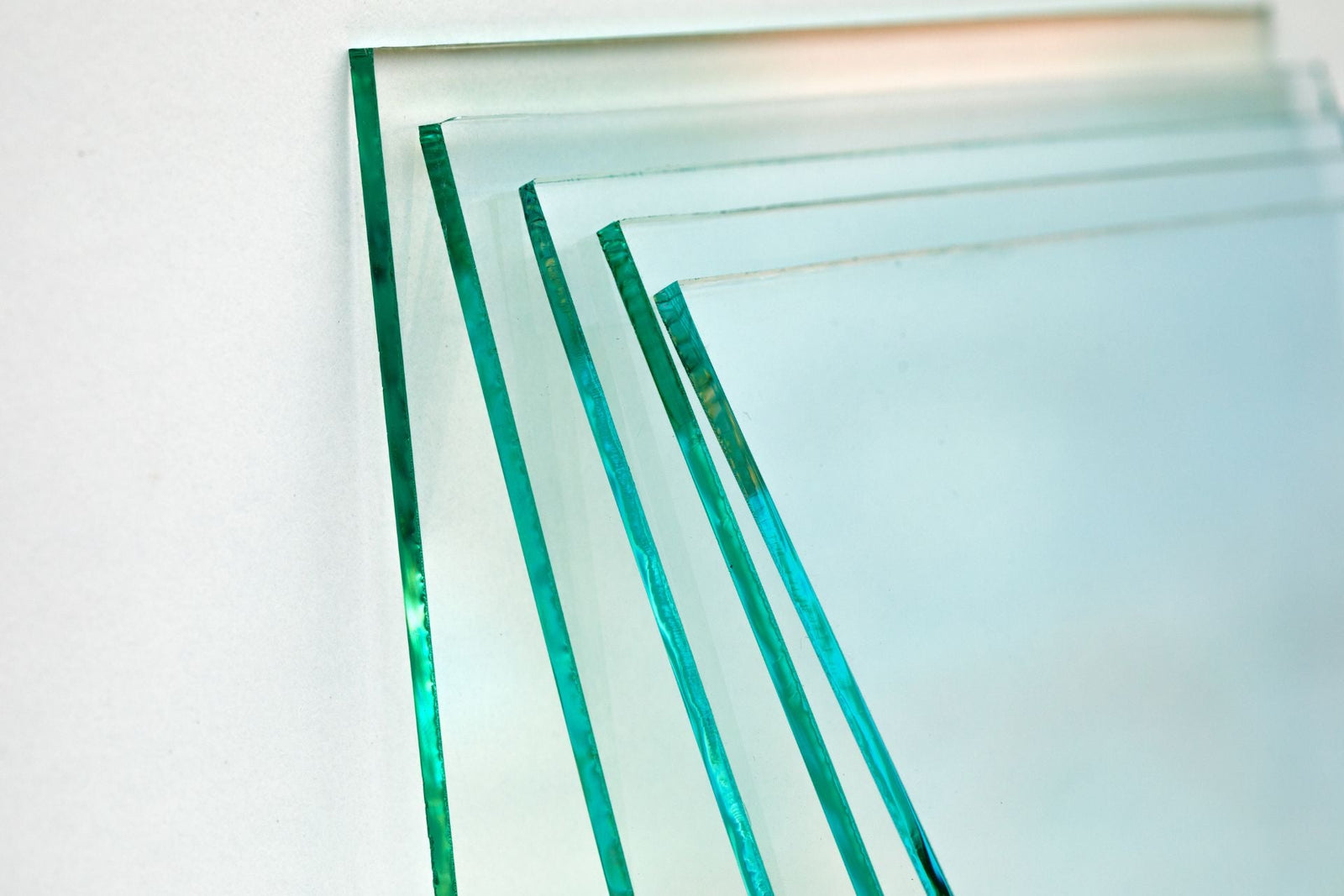

Choosing the Wrong Glass Thickness

This is where it starts. Every pond window has a maximum depth and width rating based on the glass thickness. Fit a panel that is too thin for the water pressure behind it, and you have a structural risk that no amount of sealant will fix.

A 21.5mm panel is fine for shallow ponds up to 400mm deep. A deeper koi pond at 900mm needs at least 33mm. Go beyond a metre of depth and you are looking at 39mm or 44.5mm laminated glass. There is no room for guesswork here. Our guide on how thick should pond glass be breaks down the specifications for each thickness, or you can browse the full range of pond glass windows to see the rated depth and width for every panel we manufacture.

Not Planning the Rebate Before Building

The rebate is the recess in the brickwork or blockwork that the glass sits into. It needs to be built into the pond wall during construction, not cut out afterwards. Trying to create a rebate in a finished wall weakens the structure and almost never produces a clean, level surface for the glass to sit against.

The rebate should be at least 25mm deep on all sides and perfectly square. Any unevenness will create gaps between the glass and the wall, which makes a watertight seal far more difficult. If you are planning a new build, our guide on building a koi pond with a glass window covers the structural preparation in detail.

Using the Wrong Sealant

Not all silicone is pond-safe. Standard bathroom sealant often contains anti-fungal chemicals that are toxic to fish. Acidic-cure silicone can also react with the glass edges and the liner material, causing adhesion failure over time.

You need a neutral-cure, aquarium-grade or pond-safe RTV silicone. It costs a few pounds more than generic silicone from a DIY shop, but using the wrong product is one of the most common causes of leaks within the first few months. If a leak does develop, our guide on how to stop a pond window leaking covers the full diagnosis and repair process.

Can You Install a Pond Window in an Existing Pond?

You can, but it is significantly harder than fitting one during a new build. The pond needs to be fully drained, the wall section needs cutting back to create a proper rebate, the liner needs re-routing around the new opening, and the whole area needs to cure before refilling. It is doable, but expect the project to take considerably longer and plan for the fish to be temporarily relocated.

Skipping the Expansion Gap

Glass expands and contracts with temperature changes. Without a 3 to 5mm expansion gap between the glass and the rebate on every side, the panel has nowhere to move. In summer, when the glass warms up, the pressure can crack the sealant bond or, in extreme cases, the glass itself.

The expansion gap gets filled with silicone sealant, which stays flexible and absorbs the movement. Do not pack the gap with anything rigid. No mortar, no grout, no filler. Silicone only.

Rushing the Curing Time

This one catches more people than any other. Pond-safe silicone needs a full 48 to 72 hours to cure properly before the pond is filled with water. Some products need even longer. Filling the pond too early puts water pressure against joints that have not fully bonded, and the result is a slow leak that gets blamed on the glass when it is actually a sealant failure.

Check the manufacturer's curing instructions. Then add a day. It is not worth risking a reseal because you were a day impatient.

Do You Need Clamps or Supports for a Pond Window?

For larger panels, yes. A heavy glass panel held in place only by wet silicone can slip before the sealant cures, creating an uneven seal. Glass clamps hold the panel in position during curing, and panel supports take the weight at the base. For smaller panels under 600mm, mechanical support is less critical, but it still makes the installation cleaner and more reliable.

Forgetting the Liner

The pond liner needs to sit behind the glass and bond to the sealant to create a continuous waterproof membrane. If the liner is creased, too short, or poorly positioned, water will find its way between the liner and the wall and seep out around the edges of the glass. Lay the liner flat behind the glass area first, press it firmly into the rebate corners, and apply the sealant over the liner surface rather than directly onto the block.

Not Choosing the Right Glass Type

Standard float glass is not suitable for a pond window. Neither is single-pane toughened glass on its own. Pond windows need to be laminated, which means two toughened layers bonded together with an interlayer. This provides the strength to handle constant water pressure and the safety characteristic that, if damage does occur, the glass holds together rather than collapsing inward.

If you are weighing up different materials entirely, our comparison of pond glass vs acrylic covers the pros and cons of both options.
